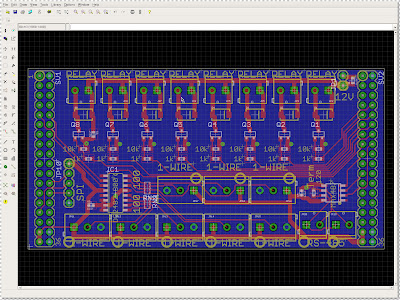

Ooops! Stuffed it up. Shortly after I send the board off, I realized that I had the 12V and GND the wrong way around on the jumper!!

This is just my sillyness in not checking it: I normally put power pins above ground pins, but the NGW100 doesn't follow my standard.

Being extra careful before sending it off again, I noticed that I had also managed to get the distance between the two 36-pin header wrong. Argh! Really not my day. And they were 34 pin headers instead of the correct 36 pin.

Ahh well. Board is now very carefully checked, send it off to
